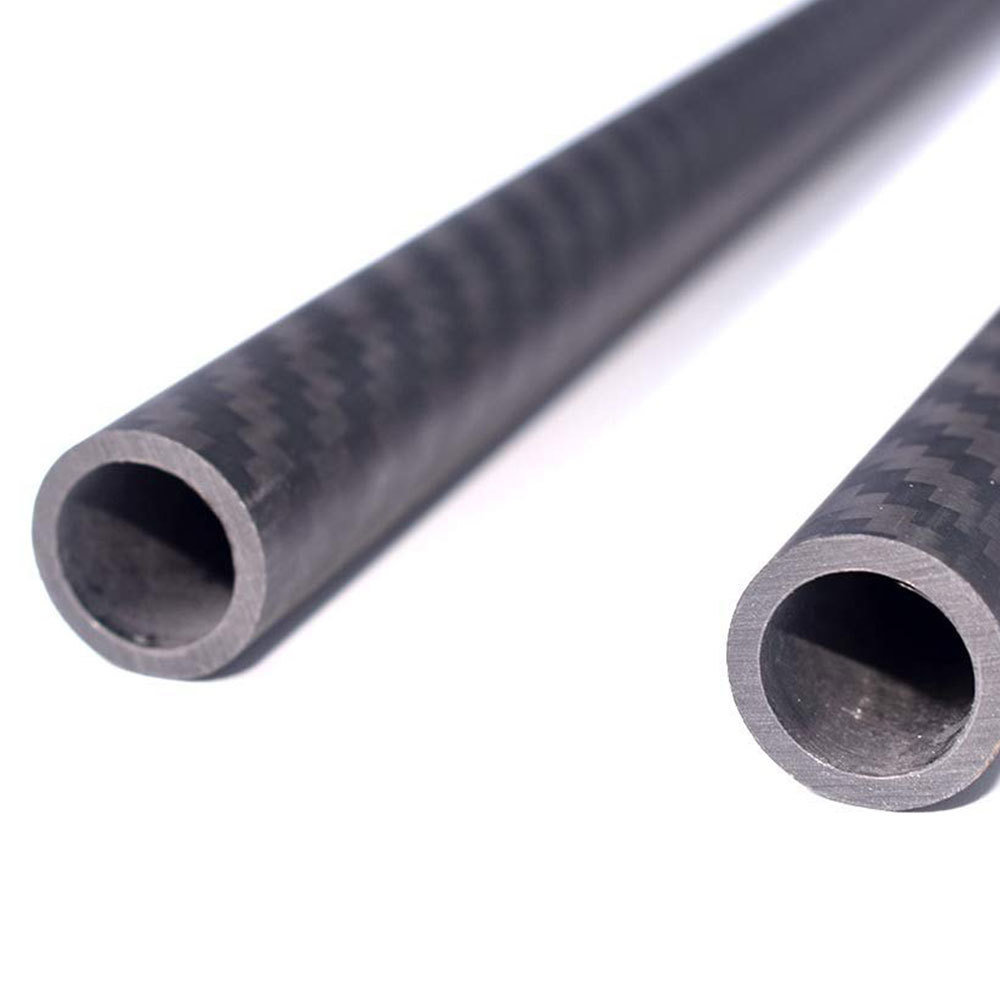

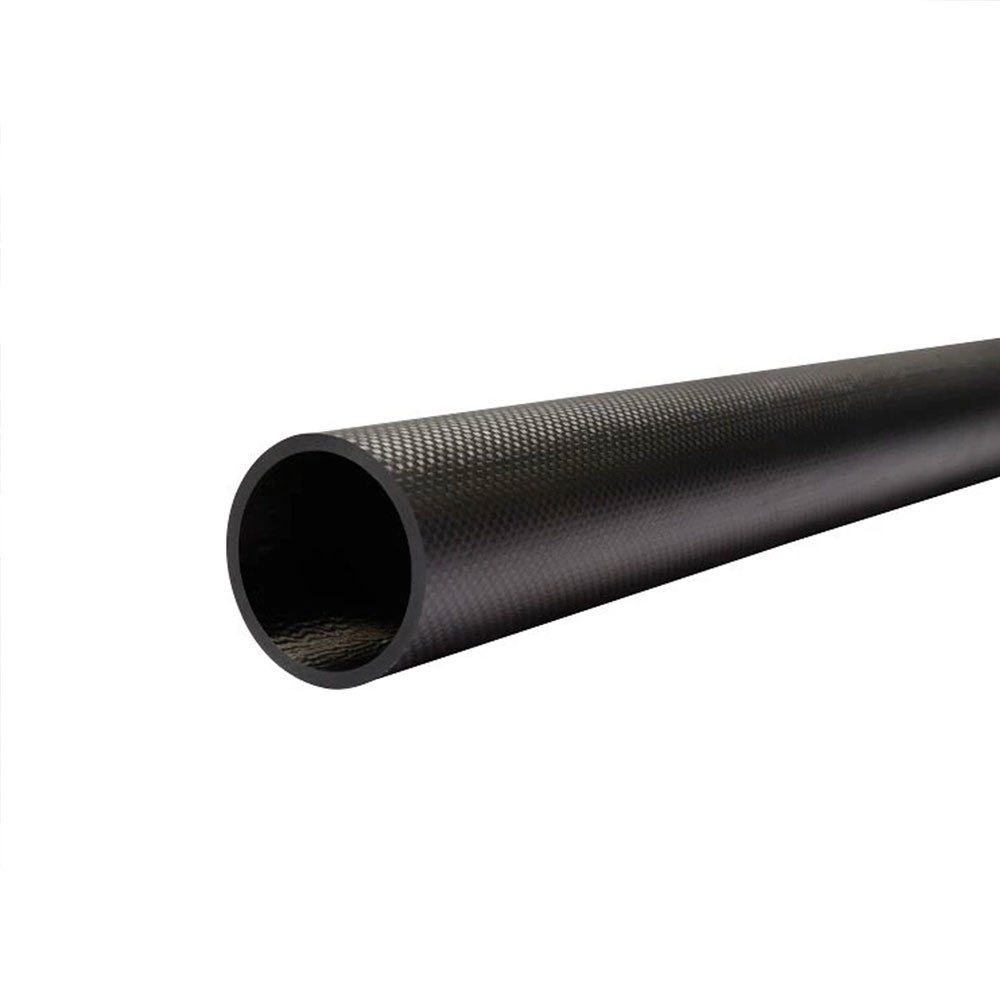

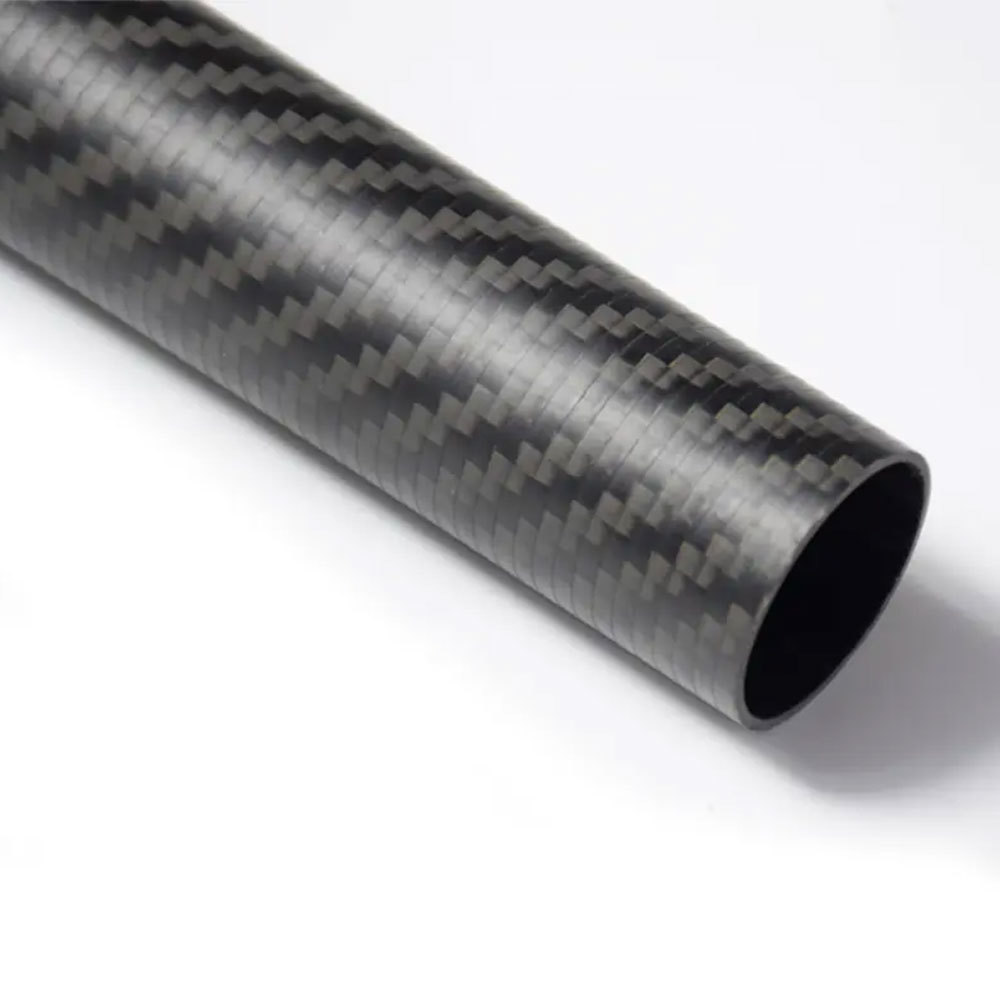

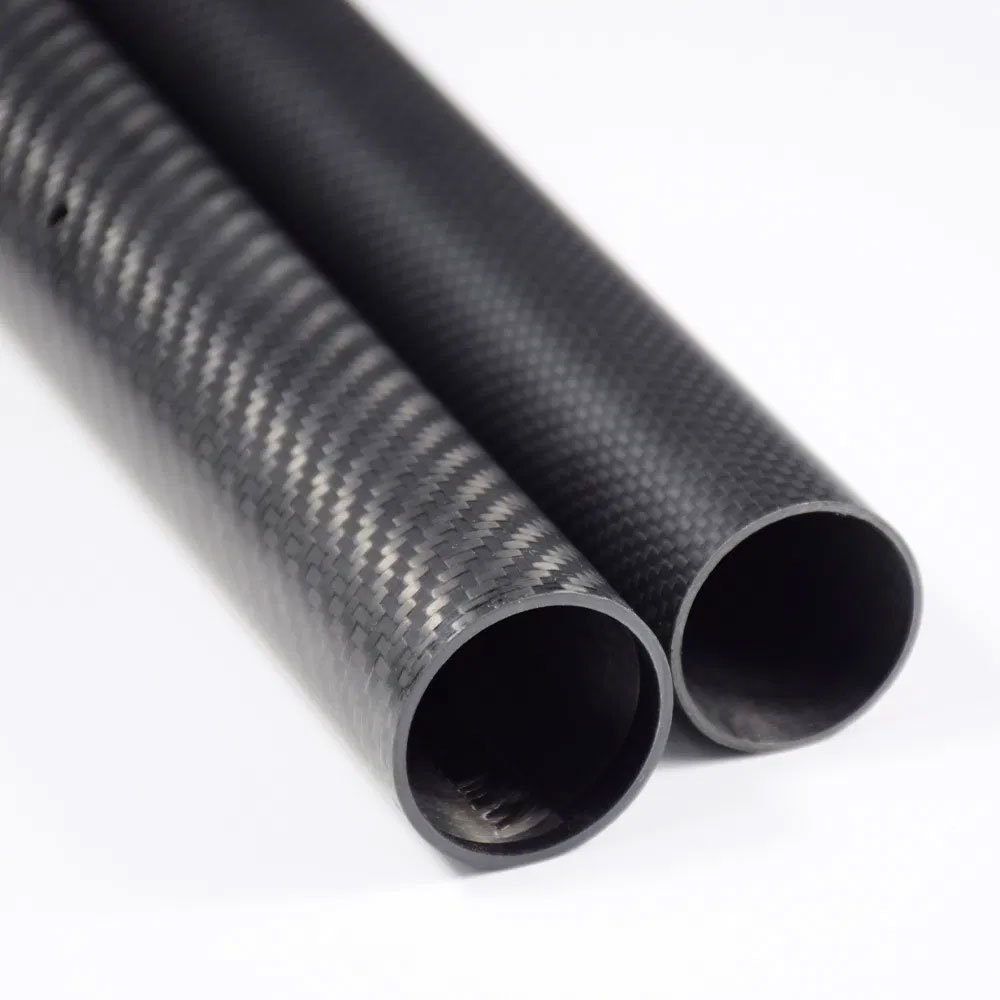

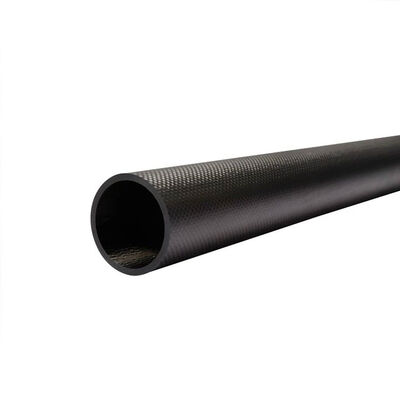

OD 100mm X ID 96mm X 500MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing 100*96 3K Twill Matte

製品の説明

OD 100mm X ID 96mm X 500MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing 100*96 3K Twill Matte

Roll-wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general each layer is about 0.006 inches thick, which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high-performance, engineered product.

Our 100% Carbon Fiber Tube is a premium-grade CFRP (Carbon Fiber Reinforced Polymer) composite tube engineered for applications that demand maximum strength, ultra-lightweight performance, and long-term durability. Unlike hybrid or fiberglass-reinforced alternatives, this tube is manufactured using pure carbon fiber material only, ensuring superior structural integrity and consistent mechanical performance.

Produced through advanced processes such as pultrusion, roll wrapping, or filament winding, each tube is carefully cured under high temperature and pressure to achieve optimal fiber alignment, high stiffness, and excellent dimensional stability.

Applications

• Automotive
• Light Aircraft Tubing
• Construction
• Duct rod / Fish rods
• Aerospace Instrument & Interior Supports
• Photography & Sound Booms
• Outer Space & Terrestrial Antenna Supports
• Corrosion-Resistant Equipment Marine
• Sporting Goods
• Oil & Gas
• Robotic Arms & Supports
• Power Generation
• Window Shades
• Wastewater Treatment
• Advertising Panels

Key Features

1. 100% Pure Carbon Fiber Construction: No fiberglass or filler materials—ensures maximum strength and rigidity.
2. Ultra Lightweight & High Strength: Excellent strength-to-weight ratio, significantly lighter than aluminum and steel.
3. High Stiffness Performance: Maintains shape under load with minimal deformation.
4. Corrosion & Chemical Resistant: Performs well in harsh environments, including moisture, saltwater, and chemicals.
5. Excellent Fatigue Resistance: Reliable performance under repeated stress and vibration.
6. Precision Manufacturing: Tight tolerance control for diameter, wall thickness, and straightness.
