Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm

最小注文数量 : 交渉可能 価格 : negotiable
パッケージの詳細 : 国際出荷のための通常の波形カートンパッキング 受渡し時間 : 注文支払いを受け取ってから7営業日
支払条件 : T/T、ウェスタンユニオン、L/C 供給の能力 : 1500pcs月
起源の場所: 中国 ブランド名: Tanku
証明: SGS, ROHS モデル番号: OEM

詳細情報

製品名: カーボンファイバー織管 外径Φ: 19mm
内部 Ø: 16mm 長さ: 2000mm
パターン: 3K Twill,1K,2K,4K,5Kなどを受け入れる 重さ: 160g - 180g
密度: 1.5g/cm3 Cコンテンツ(%): 100%
ハイライト:

woven carbon fiber tube 19mm diameter

,

carbon fiber tube 2000mm length

,

16mm inner diameter carbon tube

製品の説明

Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm



Woven Carbon Fiber Tube is manufactured using high-quality carbon fiber fabric (such as 3K twill or plain weave) combined with premium epoxy resin through a roll-wrapped or filament winding process. The woven surface pattern not only enhances structural strength but also provides an attractive, professional appearance.



Designed for high strength-to-weight performance, this tube offers excellent stiffness, corrosion resistance, and dimensional stability. Compared with metal tubing, it is significantly lighter while maintaining superior mechanical properties.



2000mm x (19mm.exterior / 16mm. interior)



Carbon fiber tube with mesh view, made entirely with high-quality carbon fiber.It is real carbon fiber, pressed and cured in the oven. With constant thickness, very high hardness and very little weight.If what you are looking for are the benefits of the carbon tube with the mesh aesthetics, this is your product.


If you need a tube with other lengths, diameters or thicknesses, do not hesitate to contact us, we can manufacture it.



Key Features

  • Exceptionally rigid
  • High dimensional stability and UV resistant
  • High corrosion resistance
  • High thermal conductivity in some forms
  • Very low thermal expansion (approx. 8 times lower than steel, 11 lower than aluminum)

Carbon Fiber Tube Applications

  • Carbon fiber tubes can be used in a variety of tubular applications. Here are some examples of current common uses:
  • Robotics and automation
  • Telescoping poles
  • Metrology instrumentation
  • Idler rollers
  • Drone components
  • Telescopes
  • Lightweight drums
  • Industrial machinery
  • Aerospace applications​

Manufactured using roll-wrapped or filament winding technology, woven carbon fiber tubes ensure consistent fiber alignment and superior mechanical performance. Custom sizes and finishes can be produced to meet specific engineering requirements.



Ideal for structural and aesthetic applications where both performance and appearance matter, woven carbon fiber tubes deliver reliable strength with a premium visual finish.



Product Name

Carbon Fiber Tube

Material

100% Carbon Fiber

Color

Black or custom

Surface

Matt/Glossy

Size

Custom thickness and length

Fiber Specifications

1K/3K/12K

Weaving Style

Plain/Twill

Fiber Type

1. Carbon fiber+carbon fiber
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber





Application

1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific Apparatus
7. Medical device
8. Others

Our Product

Carbon fiber tube, carbon fiber plate, carbon fiber profiles.

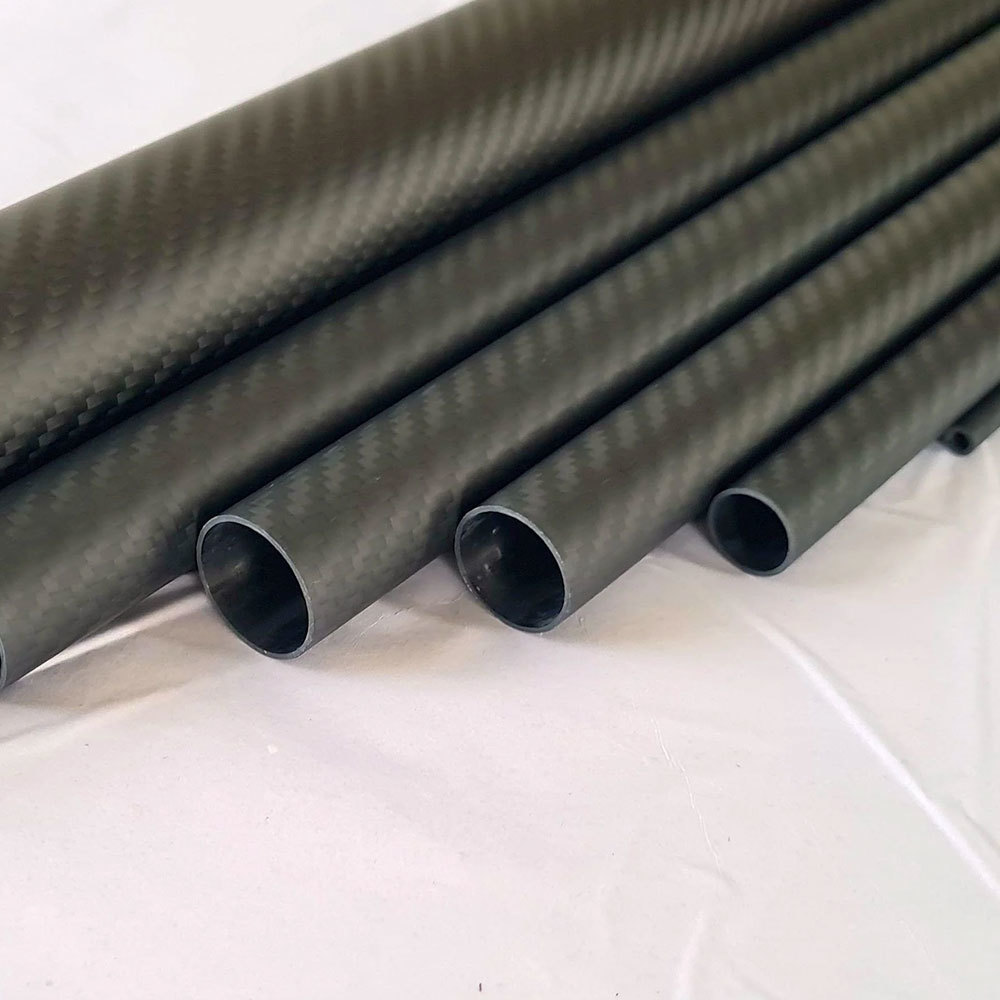

Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm 0

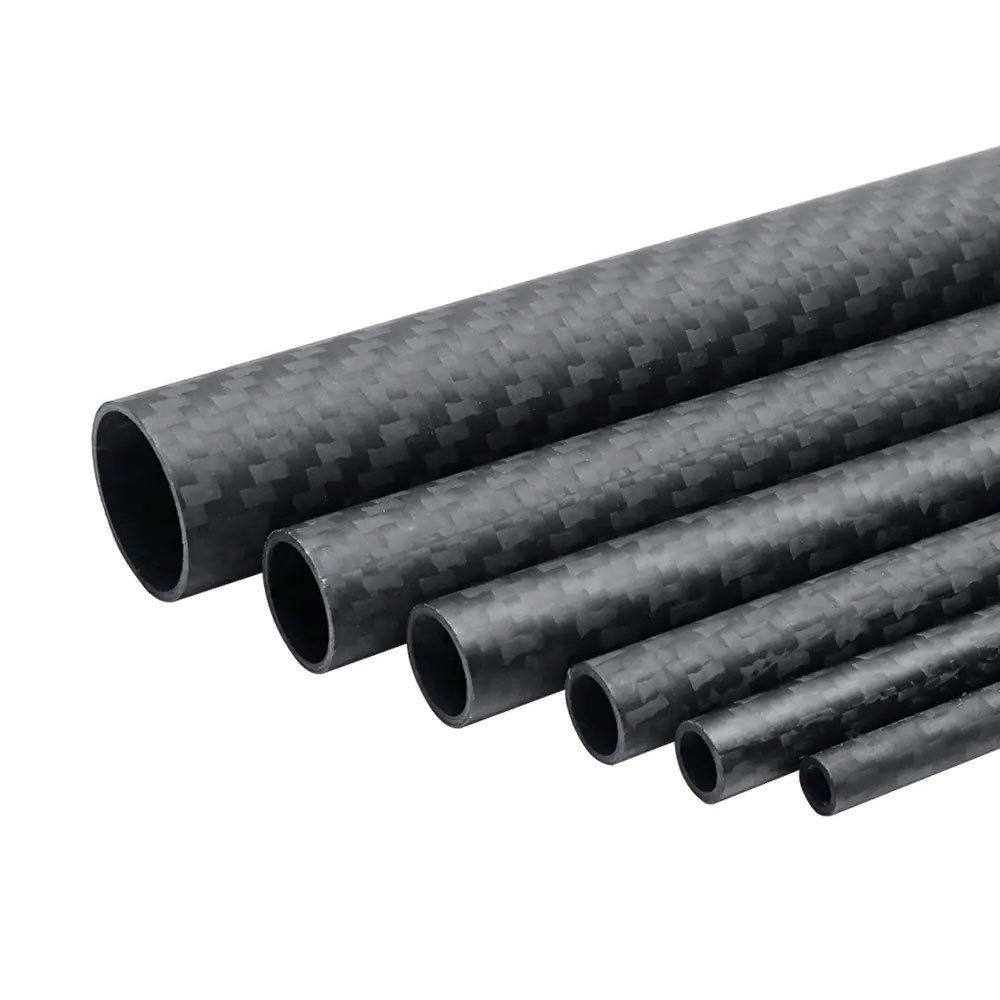

Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm 1

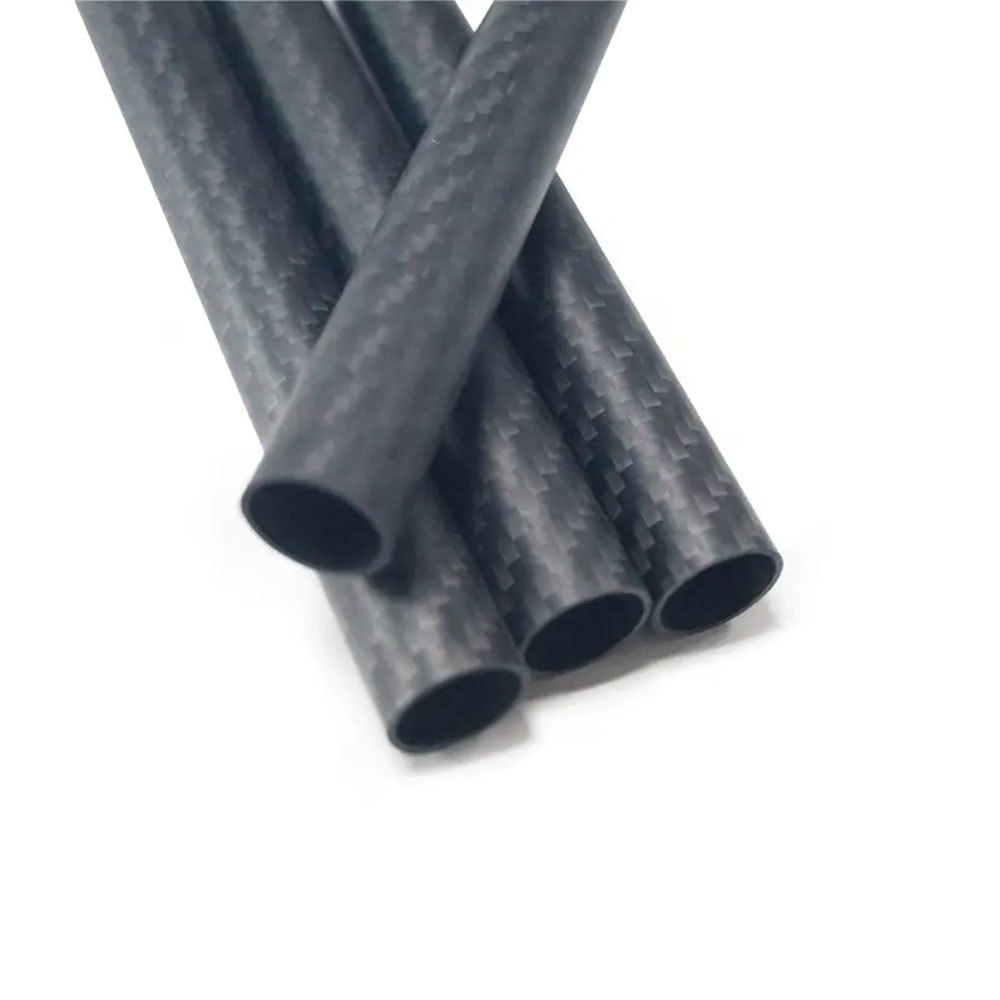

Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm 2

Woven Carbon Fiber Tube (19mm. external Ø - 16mm. inner Ø) 2000mm 3
