3K Carbon Fiber Panel 100mm x 250mm - 0.5–5mm Twill/Plain Matte/Glossy for CNC, DIY, Aerospace

製品の説明

3K Carbon Fiber Panel 100mm x 250mm - 0.5–5mm Twill/Plain Matte/Glossy for CNC, DIY, Aerospace

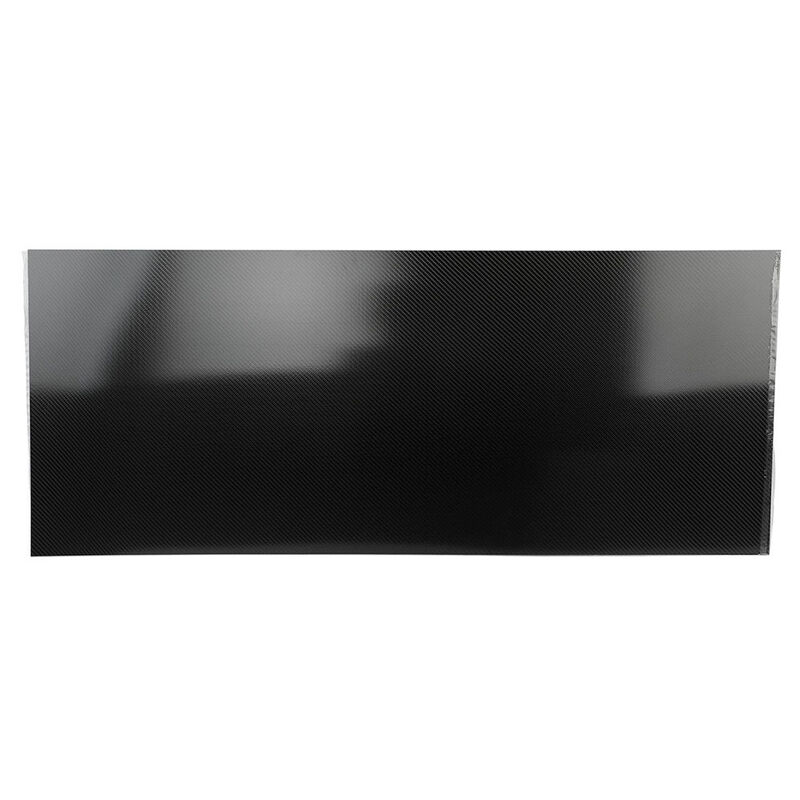

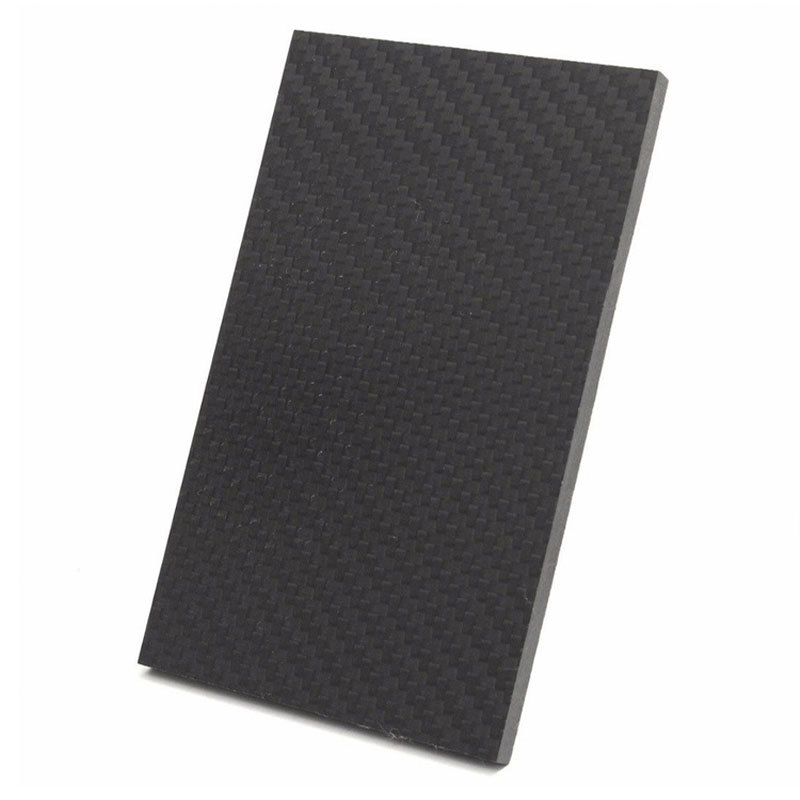

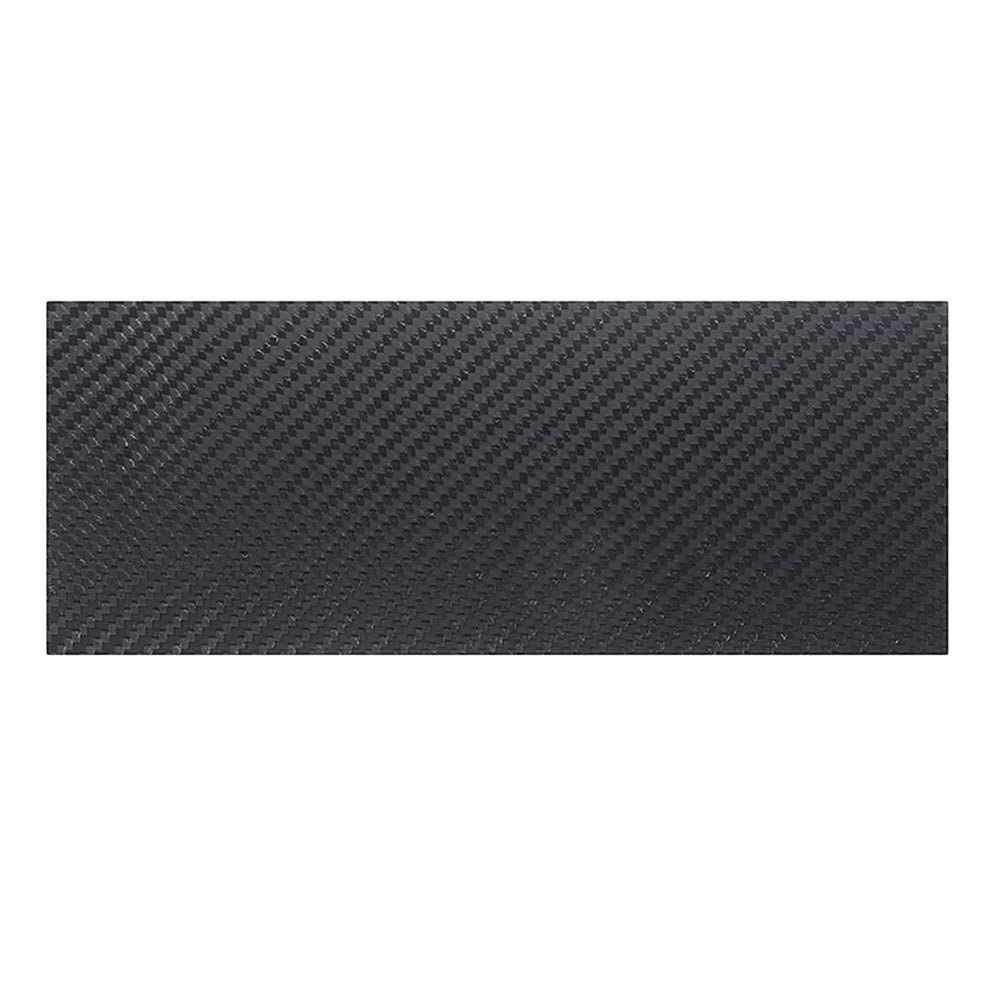

This 3K carbon fiber panel (100mm x 250mm) is made from 100% real carbon fiber with excellent strength, stiffness, and lightweight performance. Featuring a premium 3K twill or plain weave surface, it offers outstanding durability, corrosion resistance, and dimensional stability. Perfect for drones, RC models, robotics, DIY fabrication, and high-performance engineering projects. The panel delivers a smooth finish and supports custom CNC cutting.

The 100mm x 250mm carbon fiber panel is constructed using multiple layers of high-strength T300/T700 3K carbon fiber, laminated under high pressure and temperature for optimal rigidity and vibration resistance. Its compact size makes it ideal for precision components such as UAV arms, mechanical brackets, structural reinforcement plates, and custom hardware. Available in various thicknesses with twill or plain weave options.

Product Features & Benefits

• Material: 100% Pure 3K Carbon Fiber

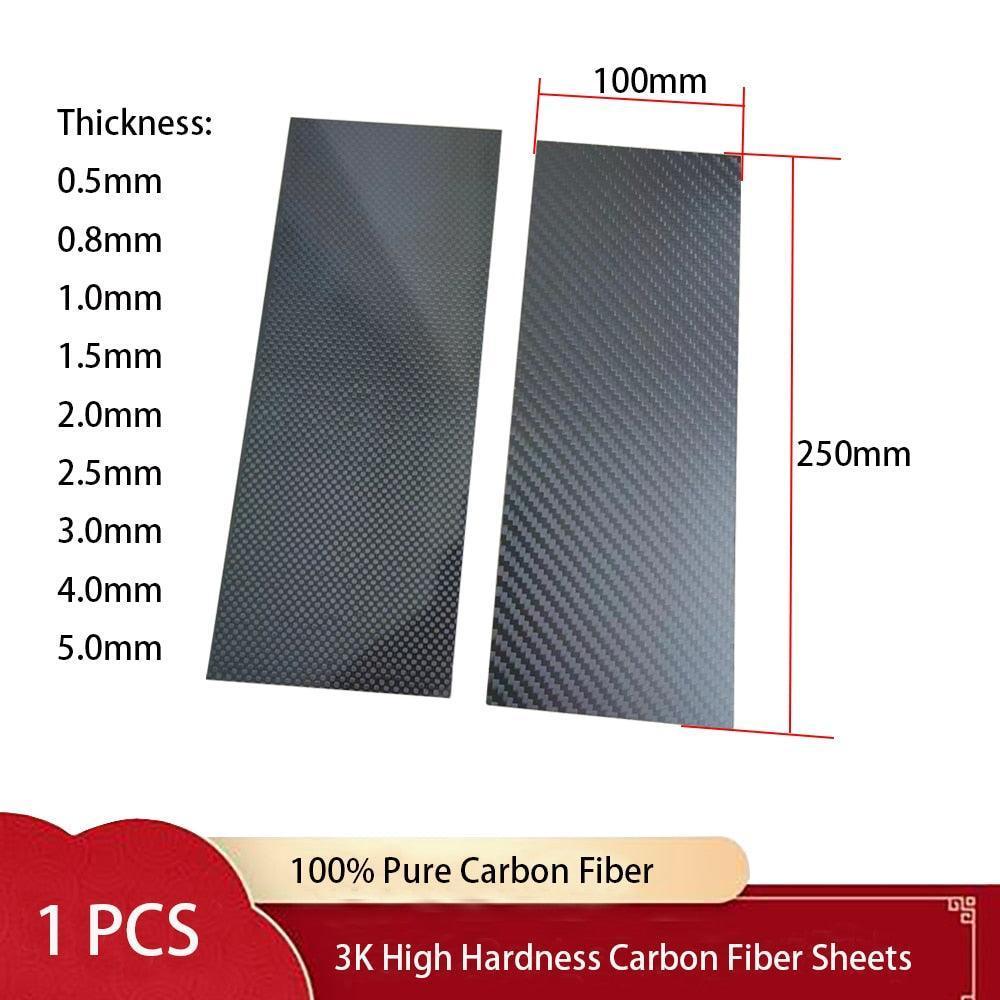

• Size: 100mm x 250mm (3.94" x 9.84")
• Thickness Options: 0.5mm to 5.0mm (~0.02" to ~0.20")
• Surface Options: Twill / Plain | Matte / Glossy
• Finish: Both sides finished (custom sides available)
• Density: Lightweight yet rigid – ideal for load-sensitive applications

Ideal Applications

• Aerospace prototyping and panels
• RC drones and flight systems
• Robotics shells and frames
• CNC-machined brackets and components
• DIY mechanical modeling and gear housings
• Industrial reinforcement panels and prototypes

Carbon Fiber Sheet Plate Specification:

Frequently Asked Questions (FAQ)

Q1: Can I request custom sizes or cuts?

Yes! We offer custom CNC cutting and laser processing. Just click the “Customize Now” button or contact our team.

Q2: What is the difference between twill and plain weave?

Twill is stronger with a stylish diagonal pattern. Plain is easier to machine and more cost-effective.

Q3: Are both sides finished the same way?

Yes. Both sides have the same finish by default, but custom combinations are available.

Q4: Is this sheet suitable for structural support?

Yes, for light- to mid-load applications. It is widely used in drone frames, brackets, and reinforced panels.

Q5: Can it be CNC cut or drilled?

Absolutely. It performs excellently in CNC, laser, and mechanical processing workflows.
