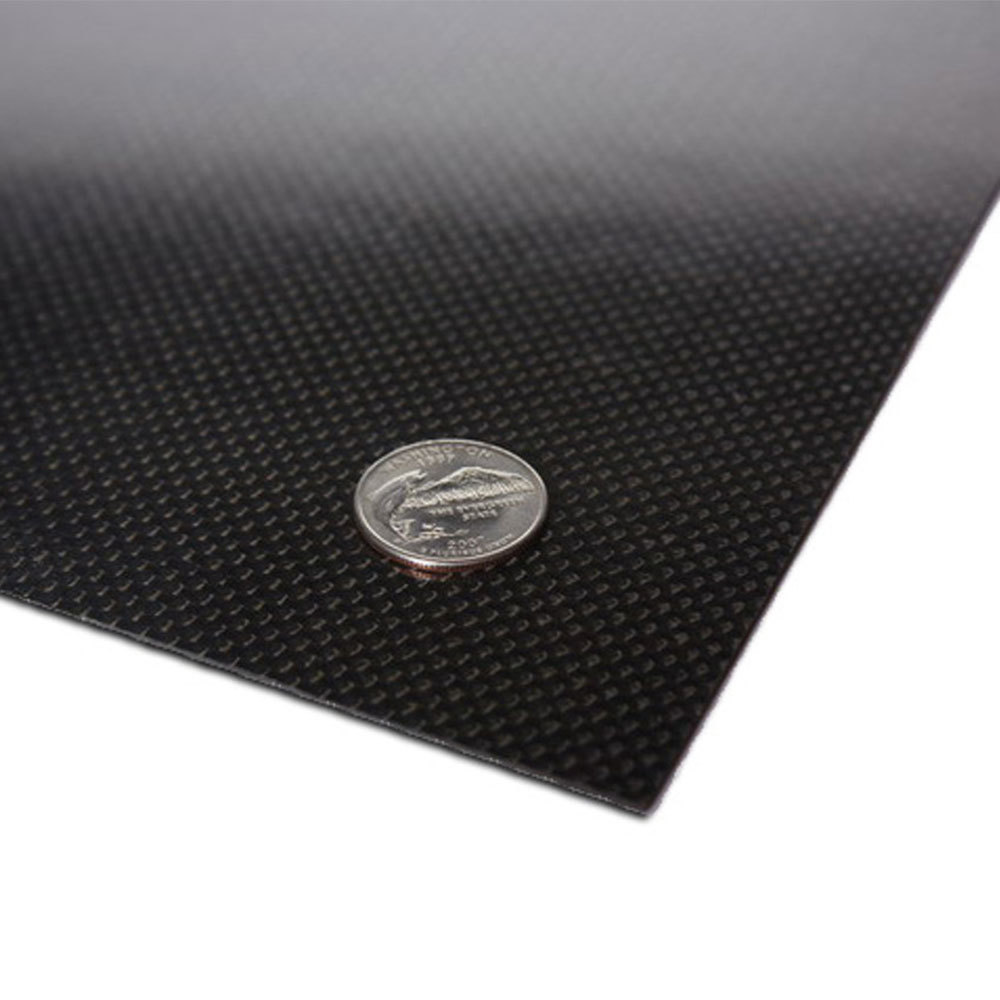

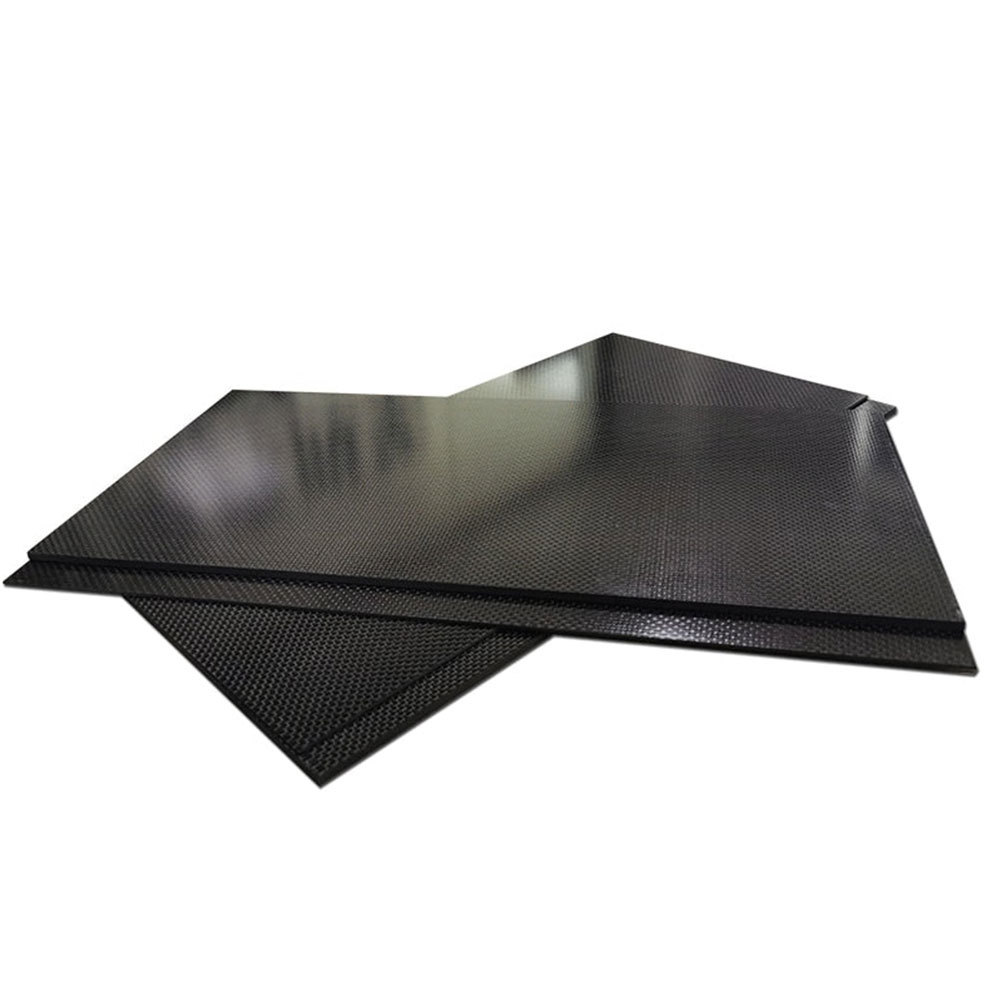

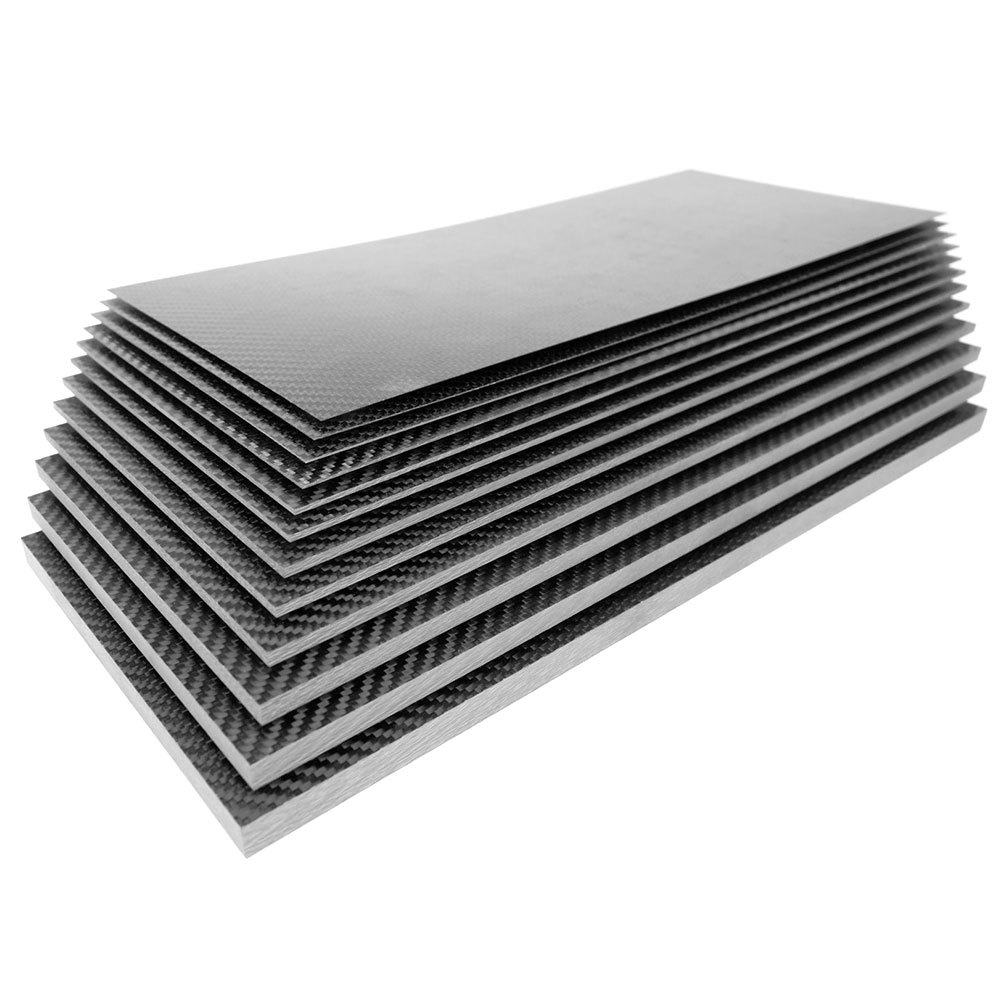

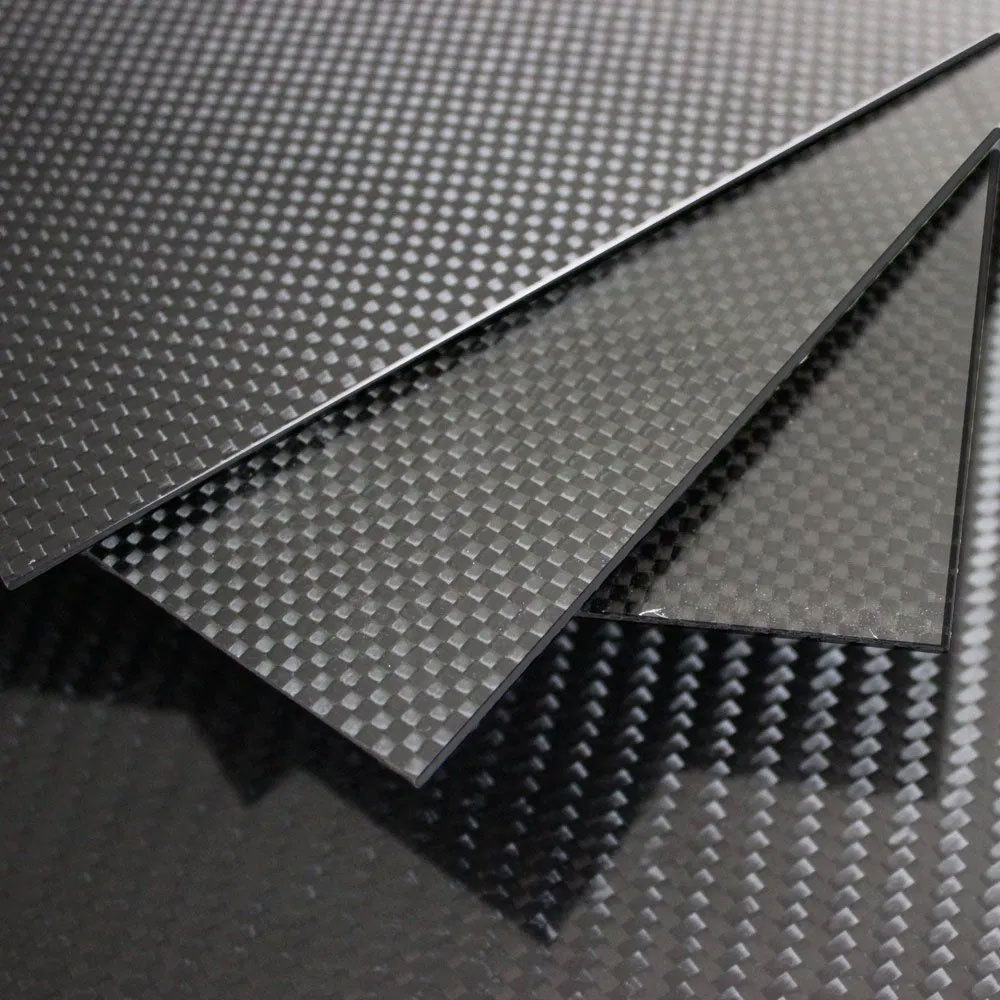

Lightweight & Durable Composite Panel - 100% 3K Matte Finish Carbon Fiber Plate

製品の説明

Lightweight & Durable Composite Panel - 100% 3K Matte Finish Carbon Fiber Plate

Made from high-strength PAN-based carbon fibers (T300/T700/T800 grade, 3,000 filaments per tow), our 3K carbon fiber sheet is a high-performance laminate impregnated with epoxy resin or high-temperature thermoplastics (such as PEEK or PPS). The material is hot-pressed and cured under 0.3–5 MPa at 120–180°C. The surface retains the iconic 3K twill or plain weave, offering both mechanical strength and aesthetic appeal. Internally, it features 0°/90°/±45° quasi-isotropic lay-up for balanced in-plane strength and stiffness.

These high-quality carbon fiber sheets come in various thicknesses, made from 100% 3K plain weave carbon fiber and finished with a matte surface on both sides. Unlike many low-cost carbon sheets that are made by pressing two outer skins of carbon fiber over a carbon and resin core, these plates are made with layered sheets of carbon fiber and resin, making them the same strength all the way through.

Whether you're making your own drone frames, car chassis, firewalls, bulkheads, or any other custom designs that require high-strength, lightweight material, these quality carbon fiber sheets are more than up to the task.

Even though LIJIN carbon fiber is among the highest quality carbon fibers, it is competitively priced, making it cost-effective and affordable to you, the customer. Many sources of carbon fiber of similar quality can cost up to 2x the amount!

Feature

• 100% 3K Carbon Fiber Strong, Strength, and Light Weight.
• Perfect for any application, including RC, drones, helicopters, etc.
• The surface is cross-grain, matte surface without any glass fiber contents.
• These carbon fiber sheets contain 100% carbon fiber imported from Japan.
• It is especially applicable for Multicopter, Helicopters, and RC airplanes.
• High Strength & Lightweight: Density of 1.55 g/cm³; tensile strength ranges from 3400 to 5200 MPa; specific strength is 5–7 times that of 7075-T6 aluminum.
• Dimensional Stability: Coefficient of thermal expansion <1.5×10⁻⁶ /°C; rigidity maintained under 200°C.
• Premium Surface Quality: 3K plain/twill weave + high-gloss UV coating; Grade-A mirror finish with no pinholes; suitable for exposed parts.
• Durability: Salt spray resistance up to 1000 hours; resistant to acid and alkali (pH 3–11).
• Machinability: CNC milling, drilling, tapping, and waterjet cutting without delamination or chipping.

Carbon Fiber Sheet Plate Specification:
